Space-saving control unit for up to 4 inkjet printheads

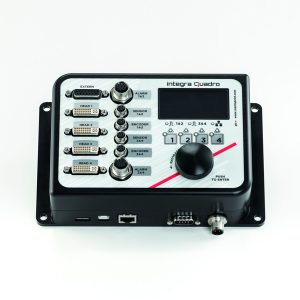

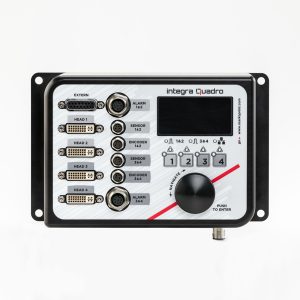

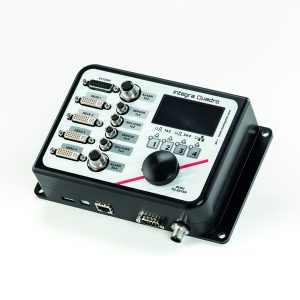

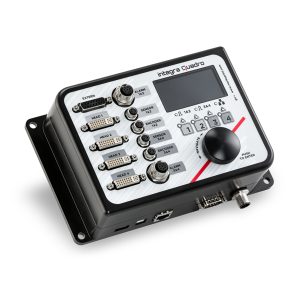

The Markoprint Integra Quadro is a controller with an OLED screen for operating up to 4 printheads. Developed specifically with mounting clips for easy integration into control cabinets and other machinery.
This unit controls a wide array of printheads and head configurations that can adapt to almost any application. The Quadro is used to communicate to a printhead that does not have its own intelligence as well as visualize print jobs and statuses of certain Markoprint printheads that do not have a built-in display. Four different print technologies are supported, HP, LX, MX, and XR.
The Quadro can operate up to 4 printheads simultaneously, giving you the options to print on two different sides of a package, two different production lines, as well as the ability to stack printheads to get a larger print height. Height varies based on the print technology.
Design and manage print layouts by using the included iDesign software. The intuitive control panel makes it easy to change already established print and label settings on the job.
Seamlessly Integrate With Systems Such As:
Vertical and horizontal band sealers, thermo forming, conveyor belts, bottling and filling lines, labeling equipment, stretch wrap machines, shrink wrap machines, side & bottom seal, sachet machines, flexible pouching, form, fill, & seal equipment, as well as almost any material handling options on the market today.
Coding needs may vary based on application, customer, substrate, & regulations but consistency and quality are paramount across the board when looking for a marking and coding system and team to trust.
As configurations and accessories vary depending on environment, application, and/or customer specifications, our sales team will work with you to ensure you’re purchasing the best solution for your project(s).
Technical Features
- Print with True Type fonts
- Alphanumeric Text
- 1D & 2D Barcodes
- Graphics & logos
- Compact design
- Print from the side or top down
- Control of up to four printheads
- Din rail clips for easy installation
- Supports four different print technologies. HP, LX, MX, XR
- Mix print technologies. Run up to 2 separate supported print technologies simultaneously with the Integra Quadro.
- Data transmission initialized with USB stick, ethernet, PLC or web interface
- Encoders for different belt speeds or system downtimes
- Flex holder for different product distances
- Mounting brackets for horizontal and vertical applications
- Max Print height from 50mm to 400mm depending on the print technology. See breakdown below.
- HP & LX :
- 1 printhead up to 12.5mm (½”) print height
- 2 printheads up to 25mm (1”) print height
- 3 printheads up to 37.5mm (1.5”) print height
- 4 printheads up to 50mm (2”) print height
- MX:
- Available with a 50mm or 100mm printhead. Up to 200mm-400mm print height possible.
- XR:
- 1 Printhead up to 71mm (2.8”)
- 2 printheads up to 142mm (5.5”)
- 3 printheads up to 213mm (8.4”)
- 4 printheads up to 284mm (11.2”)
- HP & LX :
- Parallel operation using a standard keypad and function keys
- Networking possibilities using TCP/IP, USB and EIA232
- Print on up to two production lines
- Simultaneous marking of primary and secondary packaging using a single controller
- New printhead for every new cartridge (with HP & LX technologies)
- Absorbent & non absorbent surfaces (depending on print technology)
- Robust & industrial
- High resolution up to (600 dpi)
- Print Speeds at 300dpi:
- Up to 60m/min with MX
- Up to 67/min with XR
- Up to 180m/min with HP
- Up to 240m/min with LX
Common Industries and substrates for the Integra Quadro
The Integra Quadro paired with AMI’s multitude of printhead options offers solutions for a broad range of packaging colors & materials that will adapt to your products. Designed to accommodate industries such as food, protein plants, beverage, medical device, pharmaceutical, chemical, lumber, cannabis & hemp, etc. Click through below or look through our industry pages to see the full details on your desired industries.
Connect to conveyors, cartoners, vertical and horizontal baggers, sealers, form fill and seal machines, as well as any other new or existing lines with ease! Compatible with UDI (Unique Device Identifier) as well as track and trace initiatives. Selecting the right technology to print vital identification information is crucial. Print lot, exp, serialization, date codes, barcodes, ANSI Grace A GS1 compliant barcodes, and any other required alphanumeric text and graphics. Print directly onto your hard to print on surfaces – glass, plastic, metal, etc.
