CAMI CASE PRO – CPZ18
18mm Xaar Piezoelectric Printhead

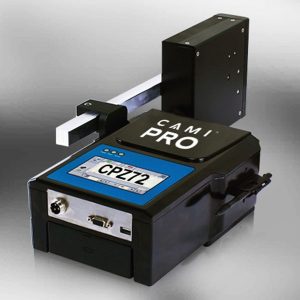

CAMI CASE PRO – CPZ72
72mm Seiko Piezoelectric Printhead
Outer case coding has met its match! Not only does the CAMI CASE PRO enable you to print high resolution prints onto the usual porous corrugate, this unit beats out its competitors with the ability to run UV Curable inks. UV inks open the door to non-porous coated corrugate, chipboard, lumber, overwrap, etc. Having a machine that can accomplish multiple tasks increases efficiency and accuracy as well as reduces production time. These units will reduce cost by eliminating the need for labels, stickers, and pre-printed packaging and stock that take up a large amount of space.

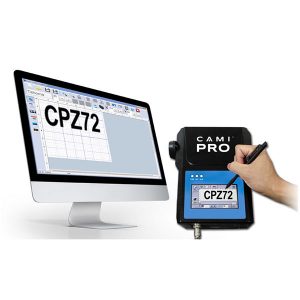

This standalone system enables you to program the machine directly from the 5″ touchscreen. No PC required.
Keeping your production space clean is a constant battle with most leaky inkjet technology. These printers are 100% mess free with a built in purge and clean system that automatically collects waste ink in a separate bottle. The CAMI CASE PRO enhances and prolongs print quality and maximizes uptime.

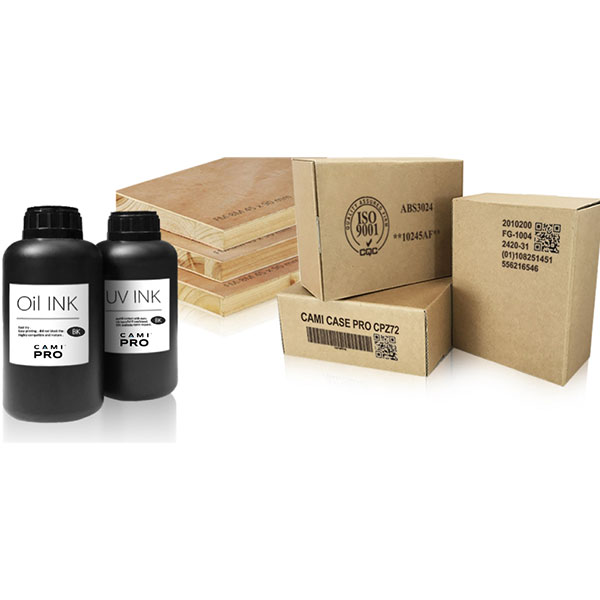

Print on a wide range of absorbent and non-absorbent substrates with an assortment of oil based and UV curing ink types and colors. 250ml ink cartridges as well as 500ml bulk ink options are available.
Store up to 1,000 messages and print up to 40″ length.
Function packed & reliable machinery!
Cardboard • Outer Cases • Lumber • Wood • Plastic • Paper
Coding needs may vary based on application, customer, substrate, & regulations but consistency and quality are paramount across the board when looking for a marking and coding system and team to trust.
As configurations and accessories vary depending on environment, application, and/or customer specifications, our sales team will work with you to ensure you’re purchasing the best solution for your project(s).
Product Features
Specifications
- Machine Type: CAMI CASE PRO – CPZ18 & CPZ72
- Print Technology: SII Piezoelectric
- Electrical Requirement: AC 90-294V, 50/60 HZ
- Display: 5″ LCD touch screen
- Software Operation: Directly on the 5″ touchscreen or on a PC then download to the printer by USB stick
- Vertical & Horizontal Resolution: 200dpi
- Maximum Print Height: Up to 18mm with Xaar head. Up to 72mm with Seiko head.
- Storage: Up to 1000 messages
- Message Length: Maximum 1024mm (40.3″)
- Operating Temperature: 41°F to 122°F (5°C to 50°C)
- Text Size: Multi line imprints depending on character size
- Operation Interface: Multilingual
- Print Speed: 148 feet/min (45m/min) at 300DPI
- Print Orientation: Horizontal and Vertical
- Throw Distance: Maximum 6.5mm/1/4″
- Print Characters: Alphanumeric, logos, date/time, shift code, serial numbers, lot/box number, external data
- Barcodes: 1D & 2D Barcodes
- External Data Interface: RS232
- Ink Types: Oil and UV Curing
- UV Cure: Inks cured by 395nm light
- Ink Capacity: 250ml standard ink cartridge. 500ml bulk ink supply available
- Ink Colors 18mm Xaar:
- 250ml UV Curing Ink Cartridges: Black, Red, Blue
- 500ml UV Curing Bulk Ink Supply: Black, Red, Blue
- 250ml Oil Based Ink Cartridges: Black, Red, Blue (porous substrates only)
- 500ml Oil Based Bulk Ink Supply: Black, Red, Blue (porous substrates only)
- Ink Colors 72mm Seiko:
- 250ml UV Curing Ink Cartridges: Black, Red, Blue
- 500ml UV Curing Bulk Ink Supply: Black
- 250ml Oil Based Ink Cartridges: Black (porous substrates only)
- 500ml Oil Based Bulk Ink Supply: Black (porous substrates only)
- Dimensions (L/W/H): 160mm x 450mm x 140mm / 6.3″ x 17.7″ x 5.5″
- Optional: Encoder, bulk ink, external low ink alarm
Built in Benefits = Uptime Advantage
- High Resolution Inkjet Printers
- Two printhead size options – up to 18mm or up to 72mm
- 5″ Touch Screen
- Cartridge and bulk ink options
- 100% mess free
- Change ink without stopping production
- Standalone unit, no shop air required
- Small foot print
- Quick start up! 2 steps- turn on and purge
- Lower cost and superior quality to the competitors
- It is not recommended to change ink types. One ink to one Case Pro.
Inks
| PRINTHEAD | CAPACITY | INK TYPE | COLORS | SUBSTRATES | SPECIFICATIONS |
|---|---|---|---|---|---|
| 18mm Xaar | 250ml | Oil Based | ◼ Black | Porous substrates only | |
| 18mm Xaar | 250ml | Oil Based | ◼ Red | Porous substrates only | |
| 18mm Xaar | 250ml | Oil Based | ◼ Blue | Porous substrates only | |
| 18mm Xaar | 250ml | UV Curing | ◼ Black | Porous and non porous substrates | 395nm curing light required |
| 18mm Xaar | 250ml | UV Curing | ◼ Red | Porous and non porous substrates | 395nm curing light required |
| 18mm Xaar | 250ml | UV Curing | ◼ Blue | Porous and non porous substrates | 395nm curing light required |
| 18mm Xaar | 500ml | Oil Based | ◼ Black | Porous substrates only | |
| 18mm Xaar | 500ml | Oil Based | ◼ Red | Porous substrates only | |
| 18mm Xaar | 500ml | Oil Based | ◼ Blue | Porous substrates only | |
| 18mm Xaar | 500ml | UV Curing | ◼ Black | Porous and non porous substrates | 395nm curing light required |
| 18mm Xaar | 500ml | UV Curing | ◼ Red | Porous and non porous substrates | 395nm curing light required |
| 18mm Xaar | 500ml | UV Curing | ◼ Blue | Porous and non porous substrates | 395nm curing light required |
| 72mm Seiko | 250ml | Oil Based | ◼ Black | Porous substrates only | |
| 72mm Seiko | 250ml | UV Curing | ◼ Black | Porous and non porous substrates | 395nm curing light required |
| 72mm Seiko | 250ml | UV Curing | ◼ Red | Porous and non porous substrates | 395nm curing light required |
| 72mm Seiko | 250ml | UV Curing | ◼ Blue | Porous and non porous substrates | 395nm curing light required |
| 72mm Seiko | 500ml | Oil Based | ◼ Black | Porous substrates only | |
| 72mm Seiko | 500ml | UV Curing | ◼ Black | Porous and non porous substrates | 395nm curing light required |

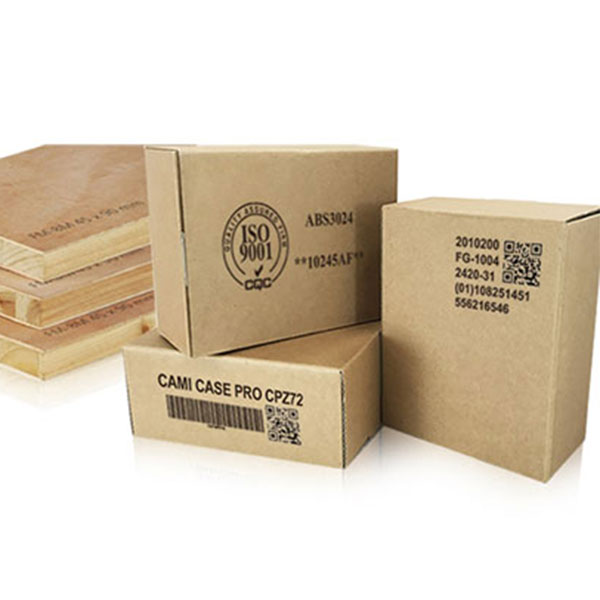

Common Industries And Substrates For The CAMI CASE PRO
The CAMI CASE PROS offer solutions for a wide array of industries, applications, and surfaces.
While the most common application is outer case coding, the availability of UV curable ink has opened the doors to some other application possibilities- including printing on glossy chipboard & overwrap. Please inquire if you have questions.
Common Industries: Meat, poultry, salty snacks, baked goods, dairy, seafood, lumber, food packaging, cosmetics, personal care, pharmaceutical, fruits & vegetables, confectionary, chemical, manufacturing and more
Common Substrates: Cardboard, corrugate, outer cases, lumber, wood, plastic, metal, paper, porous & non-porous substrates
Common Imprint Examples: 1D& 2D Barcodes, Alphanumeric Text, Logos, Graphics, Date, Time, Lot Codes, Shift Codes, Box Number, Serial Numbers, Ingredients, External Data
